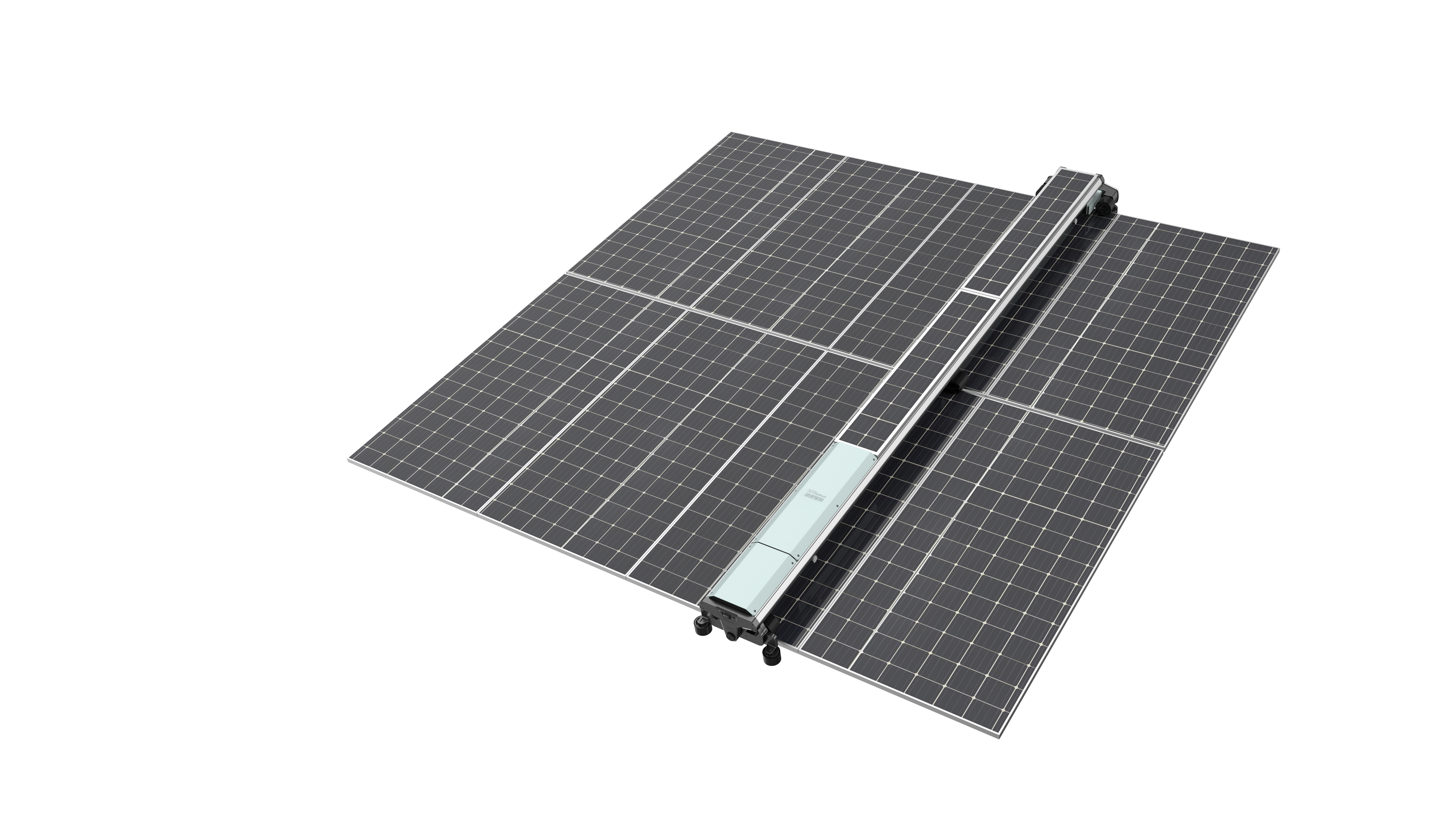

X-Human Solar Panel Customized Cleaning Robot G1
Robot Size (W)×(H)×(D): 5000mm×360mm×330mm (The Length can be customized) The product meets the cleaning needs of centralized large-area PV panels. Integrating multi-platform data, it can achieve unmanned cleaning, automatically clean photovoltaic modules, start work on time, and return to the parking stand after cleaning is completed. It relies on its own PV panels to charge the battery without the need for power from the power station. The high protection level design can adapt to various harsh scenarios, and the comprehensive fault detection and modular design enables easy maintenance.
Description
| Light-weight design | Aluminum alloy and independently developed light-weight materials are used, which ensure lighter weight and higher strength of the machine body; without giving additional pressure and load on the PV panels, it helps extend the service life of solar panels and reduce the maintenance cost. |
| Super-high compatibility | With dual-axis self-adapting rotation, inspection and calibration functions, complicated scenarios can be adapted. For different types of PV panels, postures and positions can be adjusted flexibly without worrying about the compatibility issue. |
With dual-axis self-adapting rotation, inspection and calibration functions, complicated scenarios can be adapted. For different types of PV panels, postures and positions can be adjusted flexibly without worrying about the compatibility issue.
| One-click group control function | Equipped with the background management for both the computer and mobile APP terminal, with one-click group control function, weather monitoring and automatic cleaning function. |
| Solar panel specific roller brush+high-speed DC motor | The rolling brush adopts a soft PBT brush, which has no damage to the photovoltaic panel, strong cleanliness, low temperature resistance, corrosion resistance, and long service life, efficient cleaning of photovoltaic panels with high rotational speed without damage. |
The rolling brush adopts a soft PBT brush, which has no damage to the photovoltaic panel, strong cleanliness, low temperature resistance, corrosion resistance, and long service life, efficient cleaning of photovoltaic panels with high rotational speed without damage.
| Walking correction function | It has vertical walking correction function (relative to the side of the solar panel), and the inclination angle is not more than 3 degrees when walking; It has horizontal adaptive walking function, and can connect the upper and lower bridges through the unit interval with a slope difference of not less than 25 degrees. |
It has vertical walking correction function (relative to the side of the solar panel), and the inclination angle is not more than 3 degrees when walking;
It has horizontal adaptive walking function, and can connect the upper and lower bridges through the unit interval with a slope difference of not less than 25 degrees.
Product background display
SPECIFICATION
Version: Lingguang G1
Size: 5000*600*400mm
(The Length can be customized)
Weight: 48~80KG
Working slope: 0~45°
Vertical drop: 5cm
Overcome obstacles: 5cm
Speed of travel: ≤15m/min
Cleaning efficiency: 99%
Range: one-way range of 1.8 kilometers
Rated power: 250W
Mode of travel: Electric machine+Road wheel
Operating ambient temperature: -40℃~65℃ Power supply: Self-powered of Solar +Built-in battery(standard 48V 15AH)
Power-off protection: Low battery reminder
Application scenario: Centralized solar panel power station
Cleaning method: Dry cleaning
Waterproofing grade: IP65
Cleaning components: Yes
