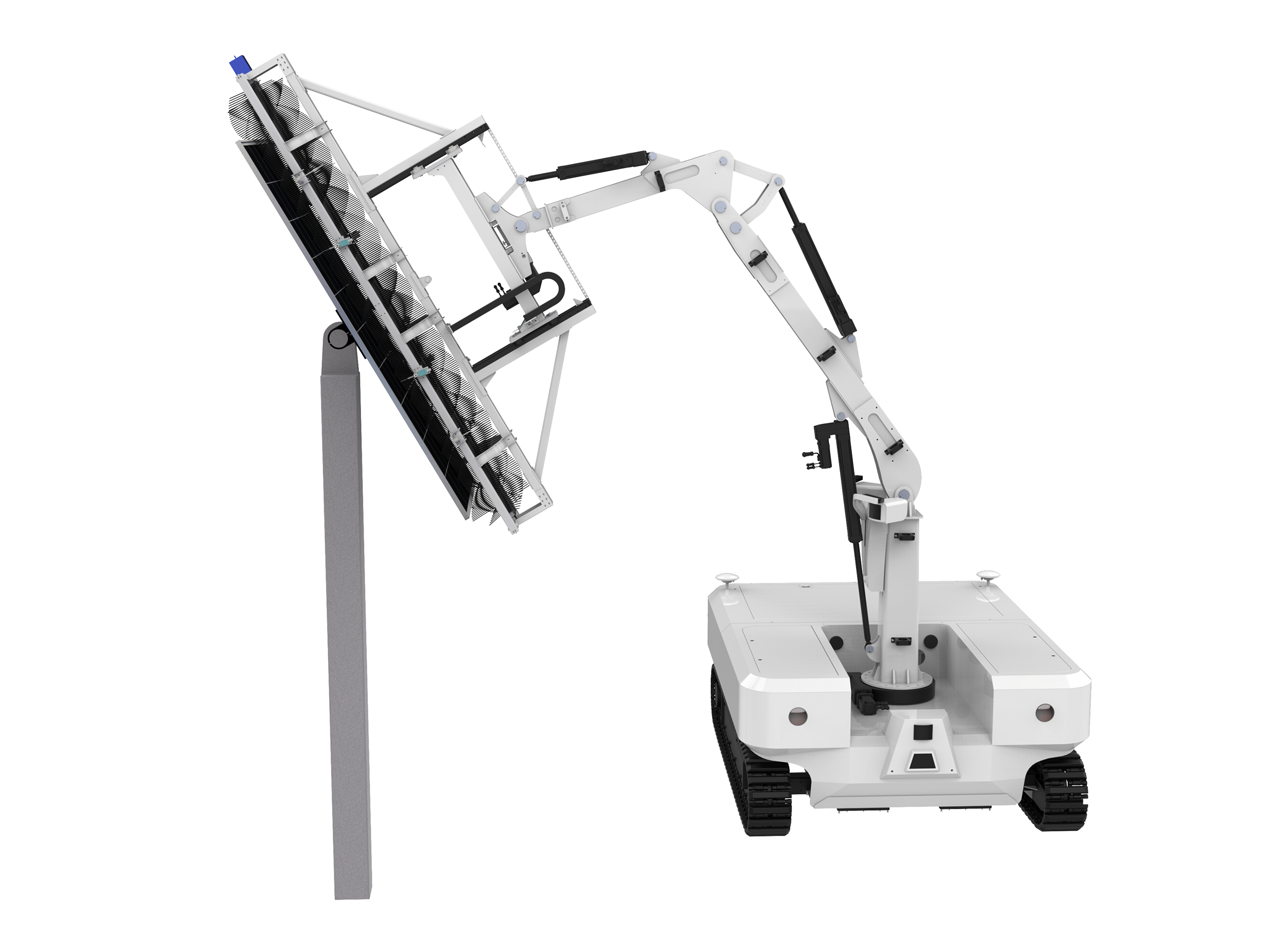

Articulated Arm PV Cleaning Robot Jupiter

Product Highlights

• All-terrain capability, multi-scenario coverage
• Autonomous operation, intelligent decision-making
• Rapid response
• High-efficiency，safe and reliable

Technical Specifications

General and mechanical

• Weight 2.5 T

2.5 T

• Max cleaning speed 2.5 km/h

2.5 km/h

• Optimal cleaning speed 1.5 km/h

1.5 km/h

• Travel speed 3 km/h

3 km/h

• Chassis type Crawler

Crawler

• Cleaning type Dry cleaning

Dry cleaning

• Operating temperature -20°C-60°C

-20°C-60°C

• Storage temperature -40°C-60°C

-40°C-60°C

• IP rating IP65

IP65

• Brush length 3 m-6 m

3 m-6 m

• Brush rotation speed 200 rpm

200 rpm

• Brush head swivel angle 360°

360°

• Cleaning efficiency 99.5% (Daily cleaning)

99.5% (Daily cleaning)

• Corrosion resistance level C4

C4

• Module coverage ratio 100%

100%

• Charge time 5 h

5 h

• Operating range 12.5 km

12.5 km

• Operating time ≥ 8h

≥ 8h

• Battery cycle life 2000 cycles

2000 cycles

Adaptive capability

• Obstacle clearance height 200 mm

200 mm

• Trench crossing capacity 400 mm

400 mm

• Max gradeability 25°

25°

• Min row spacing clearance 2 m

2 m

• Turning radius 2.5 m

2.5 m

• Module tilt angle 0-60° (1P、2P)

0-60° (1P、2P)

Communication and management

• Control mode Full autonomy

Full autonomy

• Brush adjustment Adaptive

Adaptive

• Path planning Autonomous navigation

Autonomous navigation

• Safety mechanism Hardware-software integrated safeguards

Hardware-software integrated safeguards

Document download

• PA400 “Jupiter” Articulated Arm PV Cleaning Robot Data Sheet_ Sunpure_EN.pdf
