Capabilities & Details

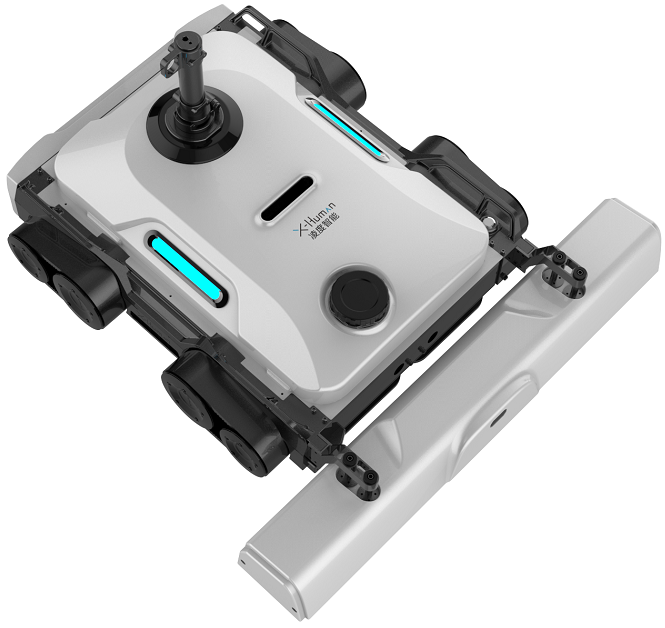

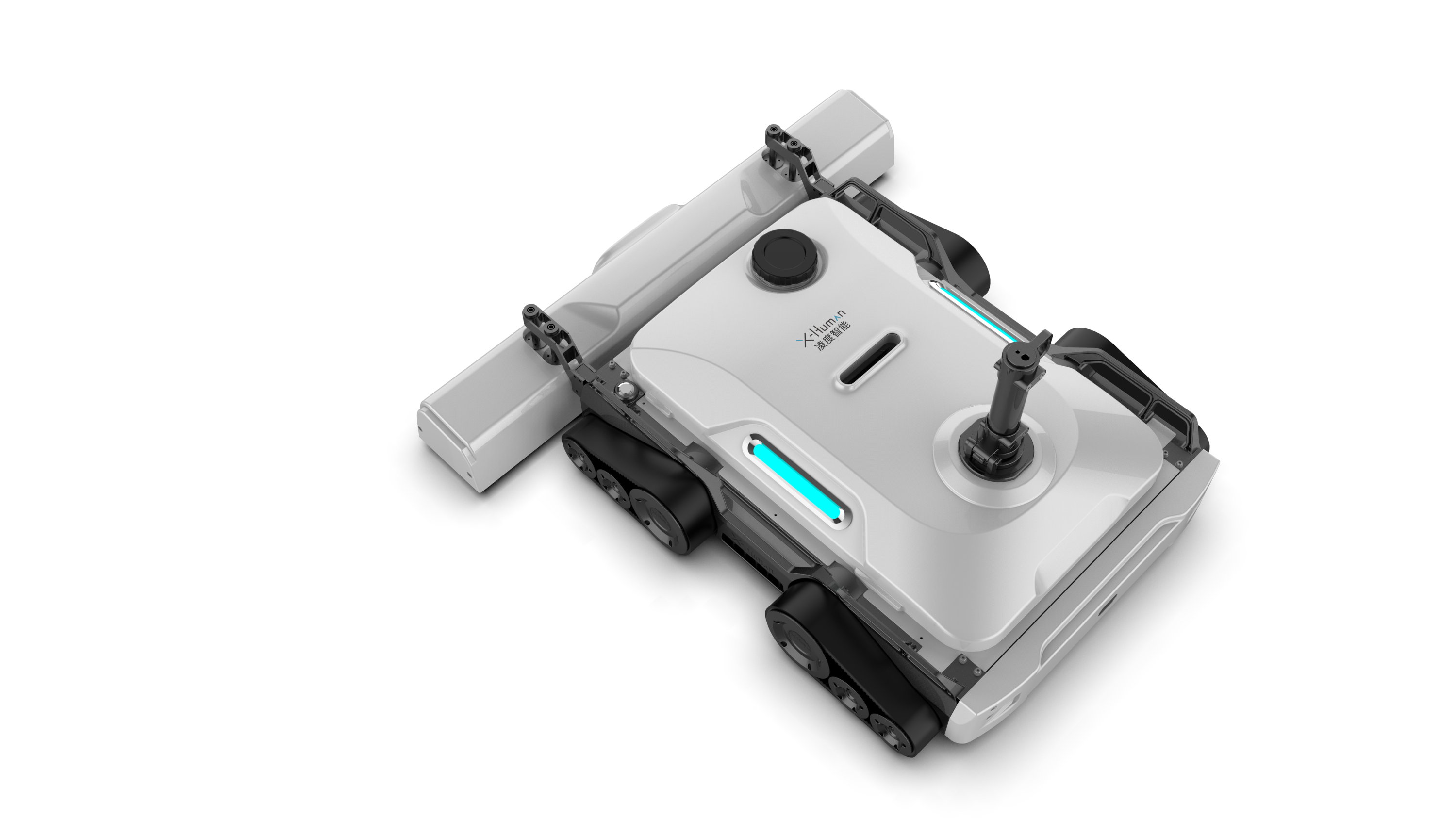

X-Human Low altitude Curtain Wall Cleaning Robot J1
Robot Size (W)×(H)×(D): 800mm×800mm×300mm
Equipped with a cleaning water tank, the product is fit for environments that require frequent replacement of clean water or where a circulating water system cannot be established. Ease of its operation enables even ordinary property service personnel to easily master it, which greatly improves cleaning efficiency and convenience.

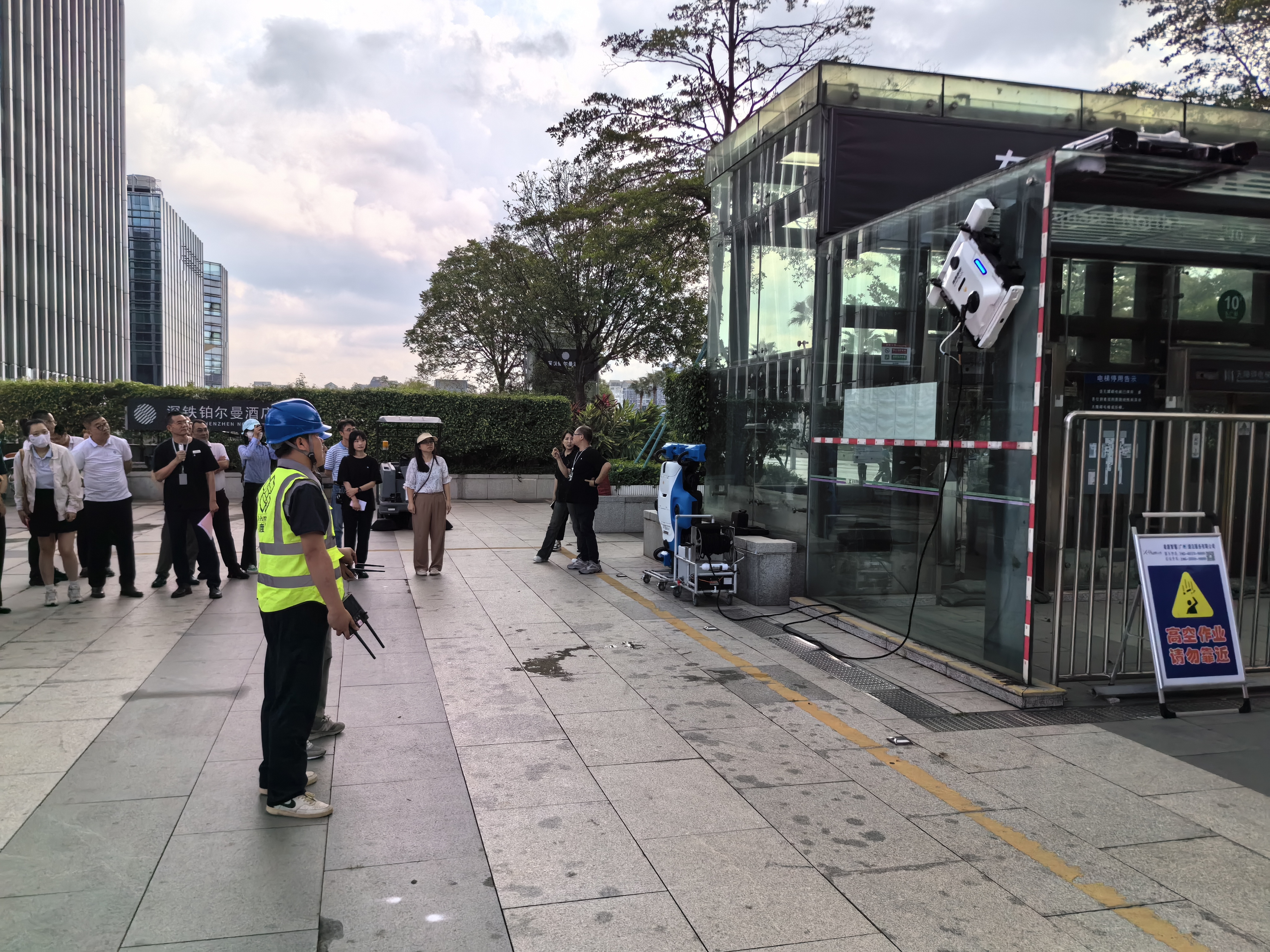

Application scenarios: Low-altitude plane glass in hotel lobbies, 4S stores, subways and airports, etc.
Description
Safety
Negative pressure is utilized for walking on the cleaning surface freely without falling off or scratching the glass.
Cleanliness
Horizontal and vertical glass can be cleaned by 360-degree rotation without leaving any corner not cleaned.
Portability
With small volume and light weight, it can be placed in the vehicle or elevator with ease, and can be move at anytime and anywhere.
Premier operability
Using only the remote control for operation, cleaning can be done easily without additional human supervision.
Clean water supply system
Water mist can be jetted out to clean away the dirt and dust.
Noise purification system
Working noise can be reduced and the surrounding environment is not affected during cleaning.
Horizontal and vertical cleaning paths are available to adapt to different cleaning environments without dead zones, bringing a better business image for buildings.
Super-long endurance ability
The robot can work for 8 hours after fully charging, and 1 pieces of battery can meet one day’s operating needs.
Four driving wheels
Different terrains and pavements can be adapted, without being stuck or toppled over.
SPECIFICATION
Version: Lingjing J1 SE
Size: 800*800*300mm
Weight: 28KG
Climbing height: 30 Meters
Cleaning gradient: 0~90°
Barrier crossing width: 5mm
Climbing speed: 0.15m/s
Cleaning efficiency: 432㎡/h
Cleaning surface width: 800mm
Temperature tolerance: 10℃~60℃
Power supply: External battery（48V 51AH）
Time of endurance: 8H/one battery
Water supply mode: External water tank (40L)
Water consumption: 200ml/min
Applicable scene: Glass, stone, aluminium alloy and aluminium-plastic panel, etc.
Cleaning components: Yes
Gallery
