Capabilities & Details
X-Human High altitude Curtain Wall Cleaning Robot K3
Robot Size (W)×(H)×(D):1377mm×1000mm×288mm It has revolutionized the traditional cleaning method in the industry, enabling zero occurrence of high-altitude operation accidents, and its cleaning efficiency is thrice that of human labor. The product has solved the issues of high risks, low efficiency, difficult employment of human labor and secondary pollution existing in artificial cleaning operations, and it does not need to connect to water pipe, gas pipe, power supply, and the operation is simple.
Application scenarios: High-altitude plane curtain wall in office buildings, hotels, commercial plazas, etc.
Description
Eight adsorption devices
The machine sucks on the high wall firmly, which can stand 12-level strong wind .
Self-adsorption power propelling system
With automatic atmospheric pressure compensation, intelligent boost adsorption is triggered in case of emergency.
Four-direction high precision sensors
Anti-bumping and anti-collision against building edge and barrier detection for intelligent deceleration and avoidance.
Dynamic image feedback system
One-button switching between intelligent and artificial modes for flexible response.
Self-locking control system
The machine can be guaranteed to be hung on the safety rope firmly despite power failure.
Safer
Anti-wind and anti-falling design + emergency safety system ensure that the machine hangs on the safety rope firmly in case of emergency, and the double guarantees ensure high safety.
Cleaner
Brush-wash-scrape multiple design enables each piece of glass to be scraped and cleaned for several times.
Efficient
Integrating AI technology, daily cleaning quantity is up to 1200-2000m² for a single day, thrice of human cleaning efficiency.
Environment-friendly
Water route circulation design and cleaning with running water prevent the secondary pollution of chemical additives on the glass wall surface and greening belt.
Power-saving
Low power consumption design enables one side of a 100-meter-tall building to be cleaned with just 2 pieces of battery, and the sewage filter and recycling system enables 8 liters of water to work for half a day.
SPECIFICATION
Version: Lingkong K3
Size: 1377*1000*288mm
Weight: 72KG
Load-bearing capacity: 1500KG (safety rope)
Working height: 600m
Operating slope: 0~90°
Crawling speed: 0.2m/s
Cleaning efficiency: 720㎡/h
Cleaning surface width:1000mm
Power supply mode:built-in battery（48V 50AH）
Endurance time:3H/Battery（±30%）
Withstand temperature: -10℃~55℃
Waterproof level:IP65
Water supply mode: built-in water circulation tank (9L)
Power failure protection: Self-locking device
Applicable scenes: pure flat glass / pure flat smooth stone
Cleaning components: Yes

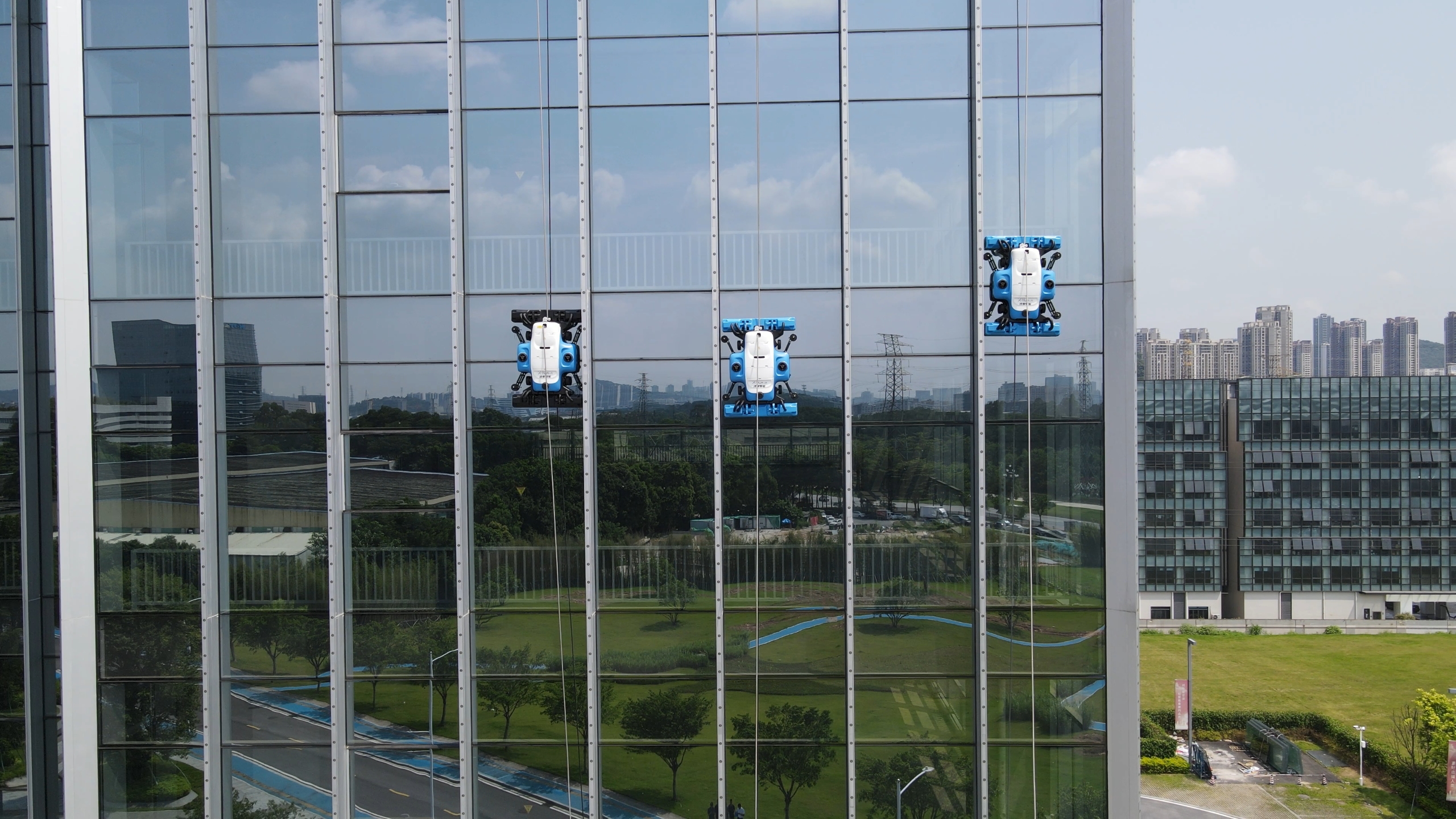

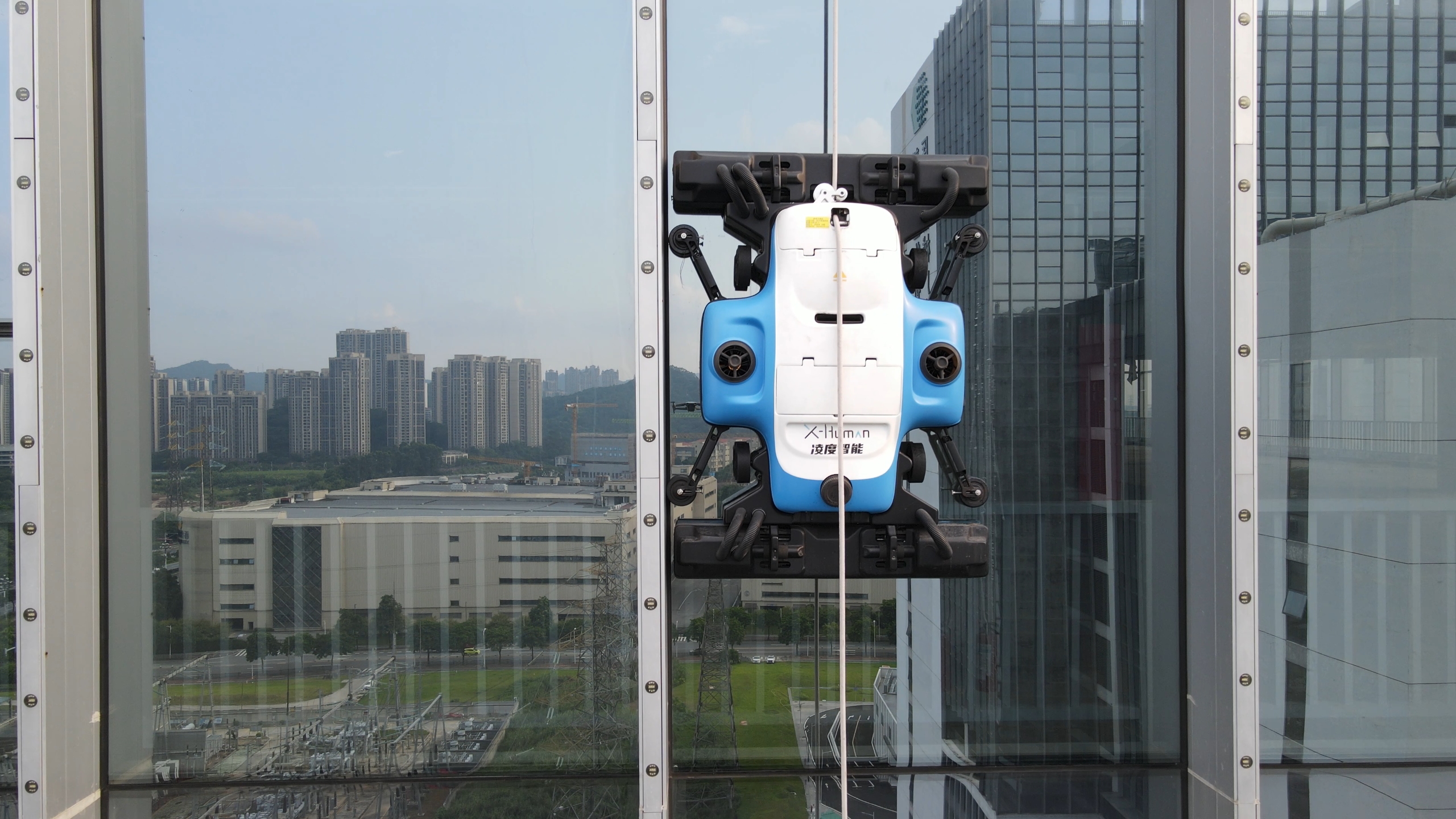

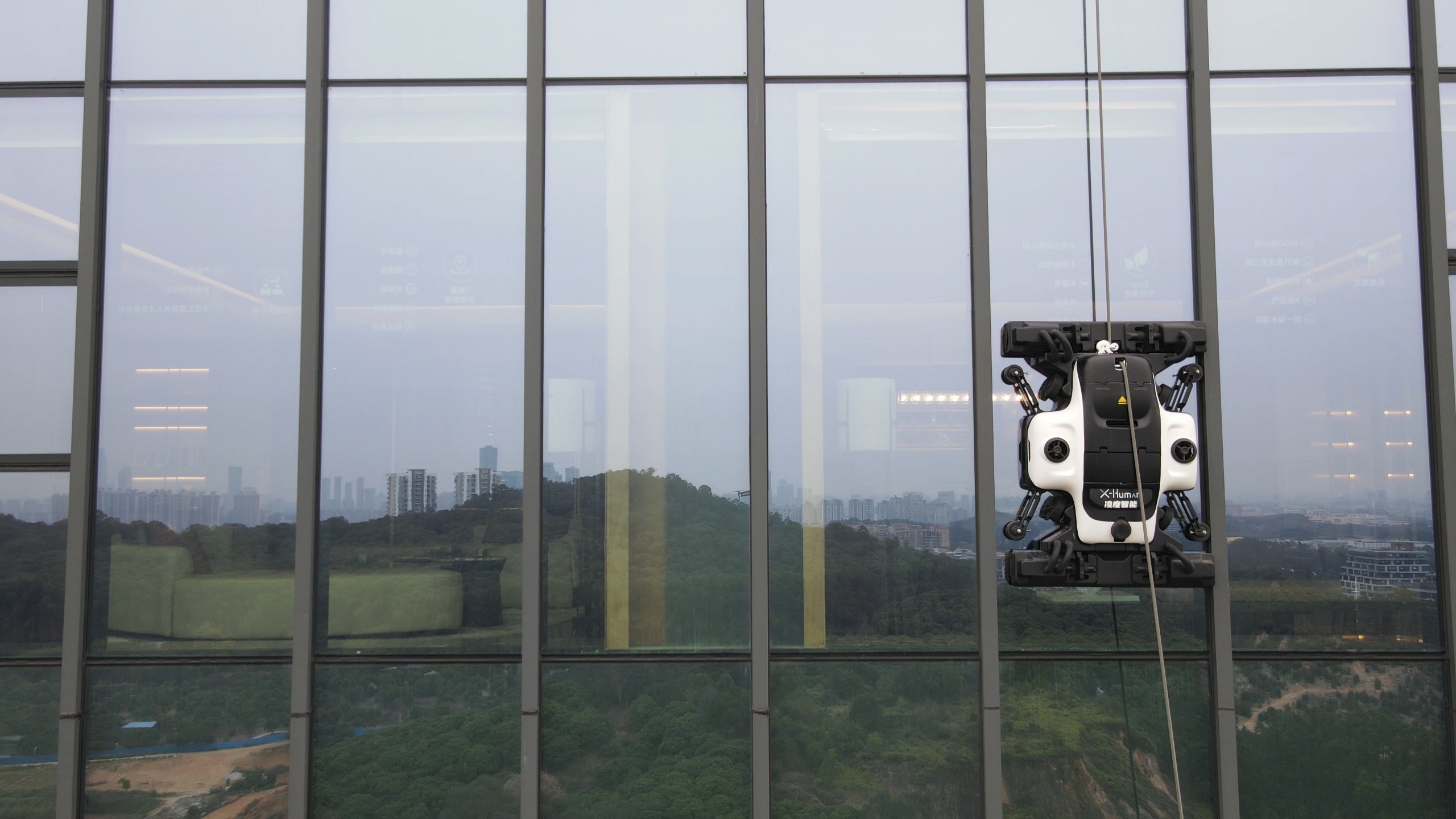

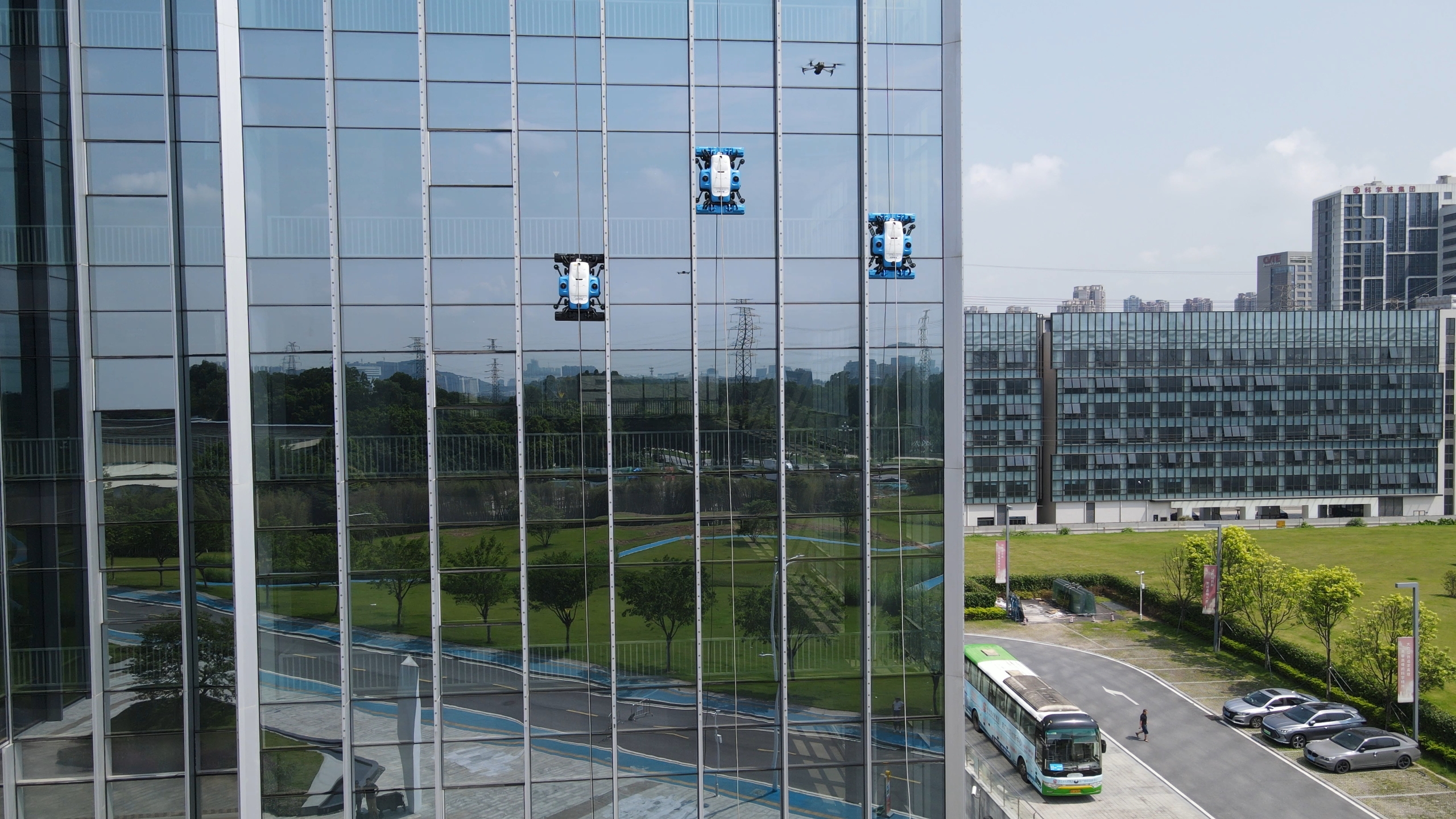

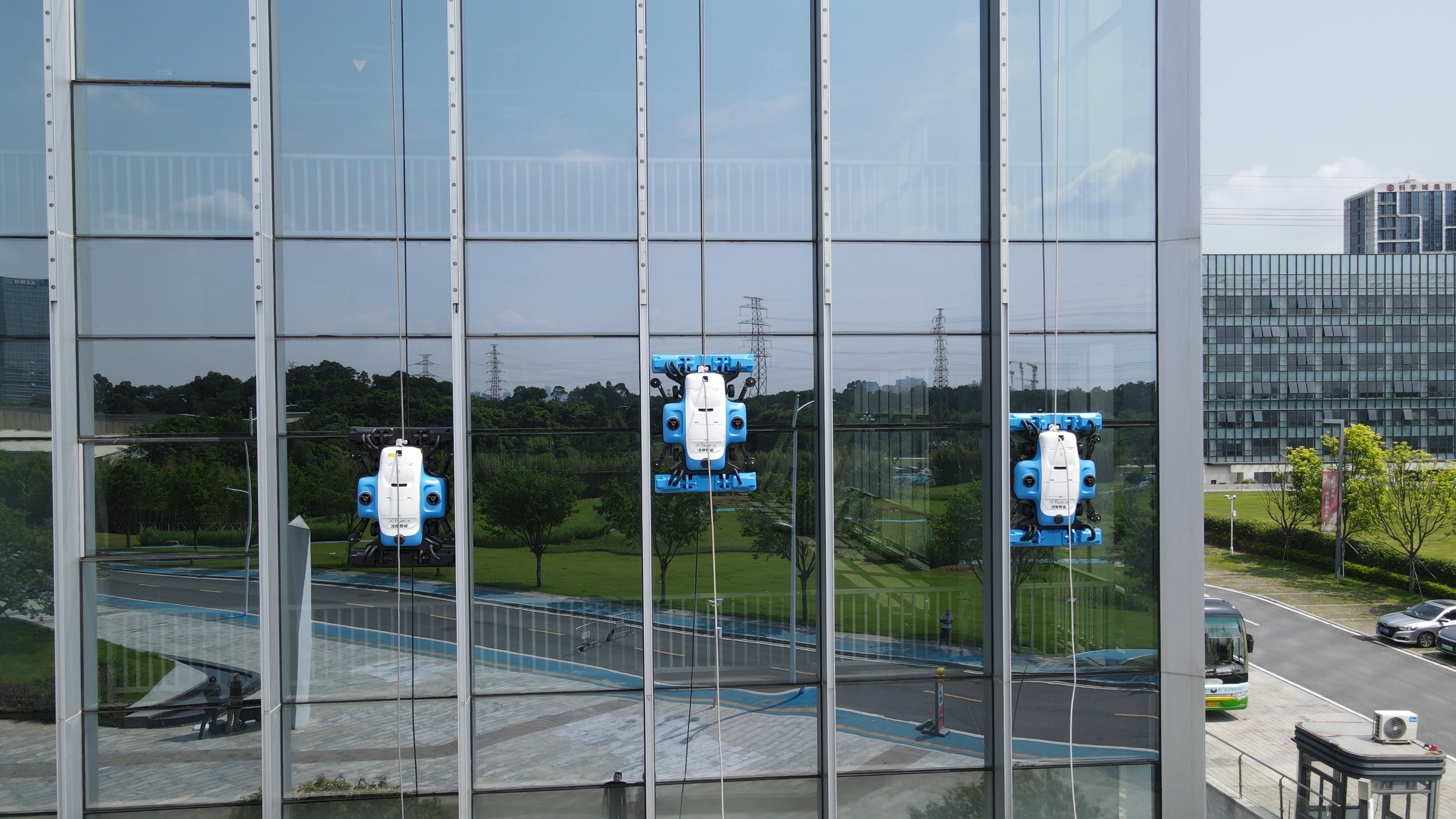

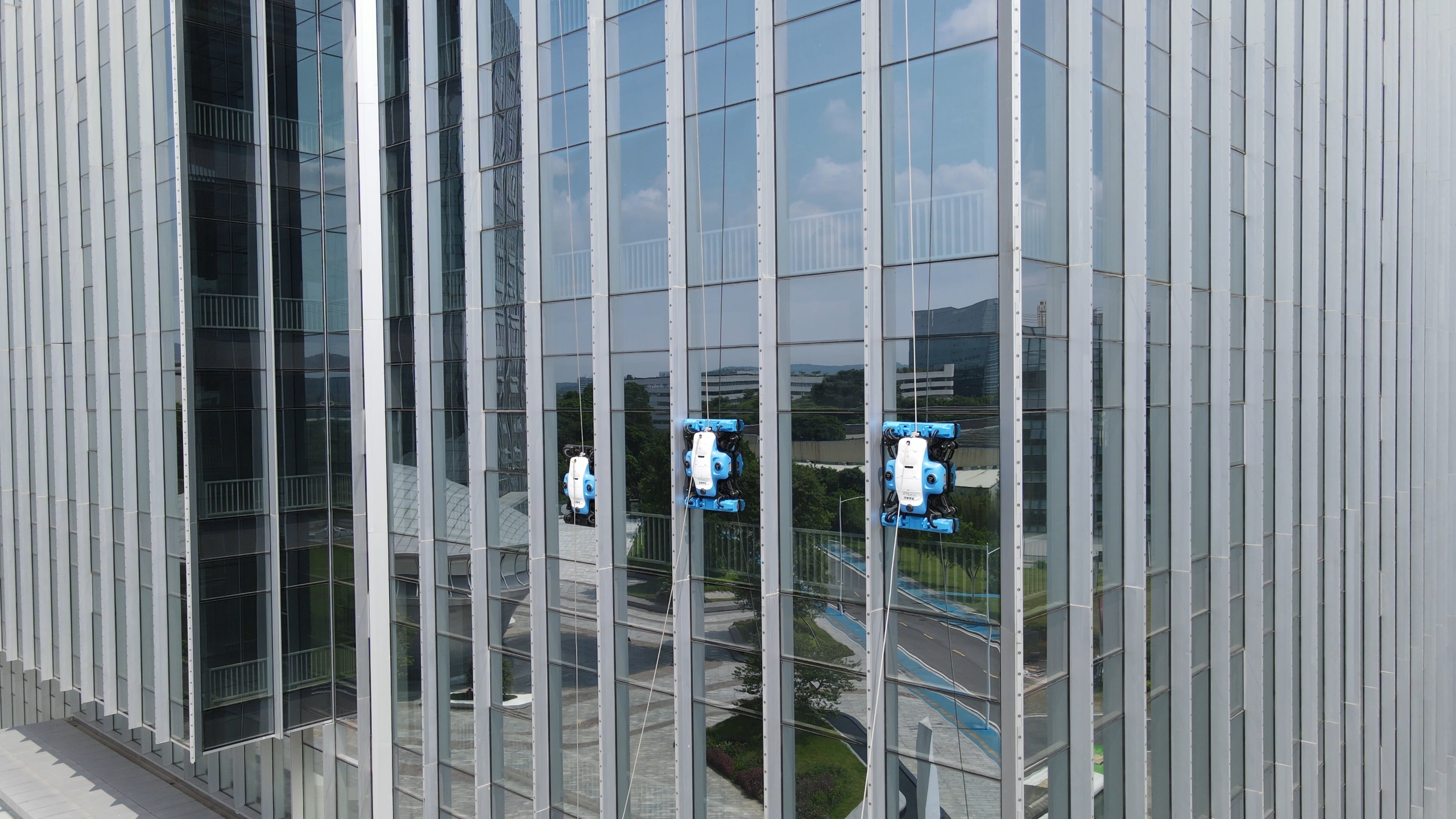

Gallery
