Capabilities & Details

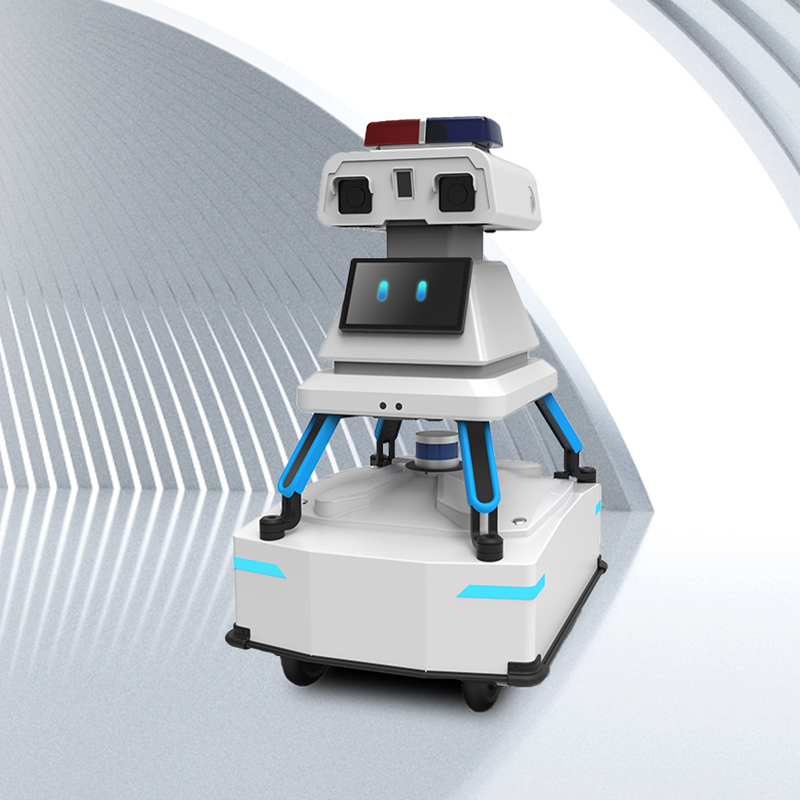

APV-S security patrol robot
Mainly applied to police stations, judicial institutions, and major exhibition and conference scenes. It has a metal body and can assist police officers in completing basic, repetitive, and dangerous police work, promote the intelligent upgrade of public security, and ensure the safety of police officers, releasing police power and reducing personnel costs.
Product Details
Product advantages:
Super navigation and obstacle avoidance capabilities: Based on ONEWAY team’s 10-year self-developed robot Low-speed automated driving (LSAD) systems, chassis motion control technology and modular chassis design with stable and reliable performance.
Support cross-floor and multi-area patrols: Through the self-developed gate&elevator IoT module, the robot can be linked with elevators and gate to achieve multi-area walking and cover a larger patrol area.
High-accuracy intelligent algorithm: Based on ONEWAY CLOUD's image deep learning and artificial intelligence technology capabilities, it has extremely high accuracy in identifying abnormal situations such as faces and intrusions.
Thermal imaging assisted monitoring: The body is equipped with a high-resolution thermal imaging camera, which integrates temperature monitoring with the high-definition camera to maximize safety risk perception capabilities.
| Police system docking | Automotive hardware platform | 1,000,000㎡mapping | Support secondary development |
Product Features:
Autonomous driving
| Autonomous mapping | Fused positioning | Navigation planning | Fused sensing |
| Autonomous obstacle avoidance | One-click arrival | Automatic charging | Fault self-testing |
Basic functions
| Panoramic monitoring | Audio broadcast | Two-way intercom | Temperature and humidity monitoring |
| Intelligent Q&A | Infrared temperature measurement | One-key alarm | Smoke monitoring |
Intelligent applications
| Patrol and take pictures | Face detection | License plate detection | Intelligent detection |
| Abnormal alarm | Patrol report | Record traceback |
Application scenarios:
Police stations
Major exhibitions and conferences
Airports
Product parameters:
Size
875 x 675 x 1270mm
Weight
105kg
| Protection level | IP55 (standard) |
Protection level
IP55 (standard)
| Operating temperature | -20°- 55° |
Operating temperature
-20°- 55°
| Adapt to walking surface | Outdoor hardened pavement |
Adapt to walking surface
Outdoor hardened pavement
| Control method | Autonomous walking｜Remote control｜RMS background｜Mobile APP |
Control method
Autonomous walking｜Remote control｜RMS background｜Mobile APP
| Maximum climbing angle | 15° |
Maximum climbing angle
15°
| Maximum obstacle clearance height | 60mm |
Maximum obstacle clearance height
60mm
| Battery life | 8 hours 48V30Ah |
Battery life
8 hours 48V30Ah
| Shock absorption method | Four-wheel independent suspension |
Shock absorption method
Four-wheel independent suspension
| Sport mode | Four wheel drive |
Sport mode
Four wheel drive
Fast charging
3 hours
| Turning radius | Turn in place｜Turn radius is 0 |
Turning radius
Turn in place｜Turn radius is 0
| Motor | 250Wx 4 1024-line photoelectric encoding |
Motor
250Wx 4 1024-line photoelectric encoding
| Maximum autonomous navigation speed | 1.6m/s |
Maximum autonomous navigation speed
1.6m/s
| Maximum remote control speed | 2m/s |
