HighMate A

Capabilities & Details

Empowering Humans with Robots

Swing Arm Multi Purpose Robot HighMate A Serie

Swing Arm Robot HighMate A10/20 Serie is an open blasting (hydro/abrasive/dry-ice/wet) and cleaning robot. From a practical application perspective, the Swing arm multi-function robot excels in areas such as steel structure sandblasting, ship maintenance and rust removal, oil tank cleaning, bridge corrosion protection, and the handling of large industrial components.

Keywords:

Swing Arm Multi Purpose Robot HighMate A series

RobotPlusPlus

BeeBot Series Product

Hydroblasting

HighMate

shipyard robot

marine robot

Swing arm multi-function robot company

Swing Arm Robot HighMate A10/20 series is a compact open blasting (hydro/abrasive/dry-ice/wet) and cleaning robot. The modular design allows one man to replace the open cleaning module with a vacuum dome module on a V40/V45 in 20 minutes. The swing speed and span can be adjusted. Two versions are available for high and low curvature.

Product Features

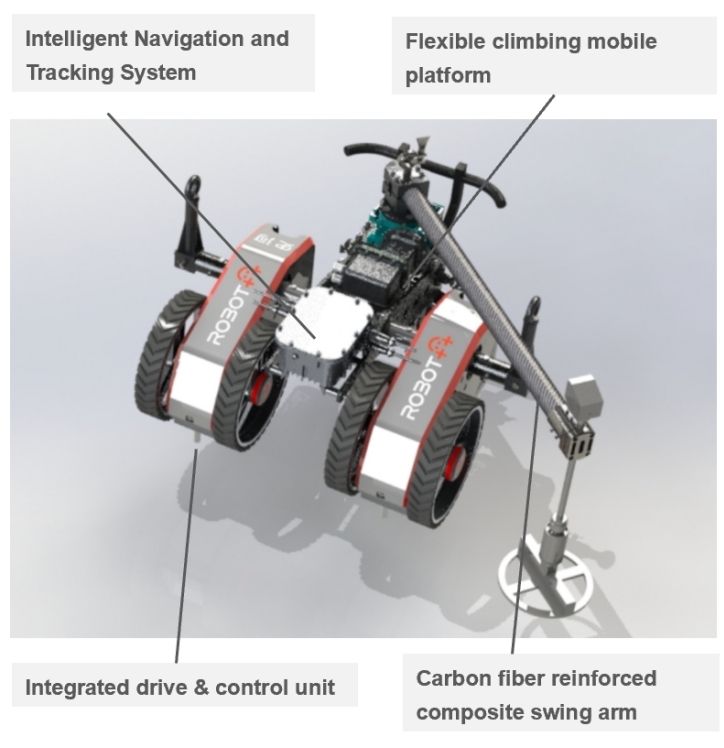

1. Modular Design: Easier maintenance and servicing. 2. Intelligent Control System: Highly integrated with one-click lane change and positioning navigation. 3. Multiple Unit Compatibility: Compatible with various tools and fixtures, capable of equipping high-pressure water nozzles, sandblasting guns, paint spray guns, etc., to meet different requirements. 4. Wide Range of Applications: Strong adaptability to curved surfaces, capable of operating on vertical surfaces, flat surfaces, and curved surfaces.

Technical Parameter

Size	1127×915×587 mm
Weight	85 kg	Power	1.2 Kw AC220V/50Hz
Cleaning width	1400 mm	Obstacle crossing	≤18 mm
Min curvature radius	3m (hinge joint version)	Max speed	10 m/min
Production Rate	30-150 m²/h (Efficiency varies with parameters such as operators 'proficiency, coating type,and water pressure)
Control mode	Remote control-Manual/Semi-autonomous /Autonomous
Surface quality	WJ1 to 4 or less	Maximal load capacity	150 kg
Pump requirement	Pressure	300-2,800 Bars	Flow

From a practical application perspective, the Swing arm multi-function robot excels in areas such as steel structure sandblasting, ship maintenance and rust removal, oil tank cleaning, bridge corrosion protection, and the handling of large industrial components. Its flexible swing-arm movement can conform to curved and vertical surfaces, achieving high coverage and efficiency. Through intelligent control and automated execution, companies can not only improve production speed but also significantly reduce labor costs and operational risks, further enhancing their market competitiveness.
