Polishing Robot
The tank polishing/grinding B50 is used for weld seam grinding and surface preparation
Category:
Keywords:
RobotPlusPlus
HighMate
BeeBot
Sandblasting
Hydroblasting
The tank grinding robot (B50) is primarily used for weld seam grinding and surface preparation during the maintenance of oil or chemical tanks. The robot features a modular grinding unit that can perform grinding on weld seams and the surrounding areas. Compared to traditional manual grinding methods, it offers advantages such as lower costs, safety, and reliability.
Product Features
1.Strong Curved Surface Adaptability: The robot can safely adhere to and move freely on the surfaces of chemical storage tanks and spherical tanks, with flexible control. 2.Intelligent Grinding Operations: The platform has weld seam tracking capabilities, allowing the robot to autonomously follow and grind the weld seam, achieving automated operations. 3.Automatic Grinding Ability: The robot can autonomously adjust the grinding speed based on the weld seam condition, ensuring consistent grinding quality. 4.Modular Design: The robot supports quick replacement of the grinding unit and consumables such as grinding brushes, making maintenance easy. 5.Excellent Grinding Result: The robot achieves St3 grade grinding quality, with a single-pass grinding width of up to 220 mm.
Technical Parameter
| Dimension | 720*370*330 mm | Minimum Curvature | 1.5 m |
| Weight | 40 kg | Working Width | 220 mm |
| Speed | 3.7 m/min | Efficiency | 0.3-0.7 m/min |
| Power supply | 220V AC/50 Hz | Power | 3500 W |
Video
Online Message
Recommended Products

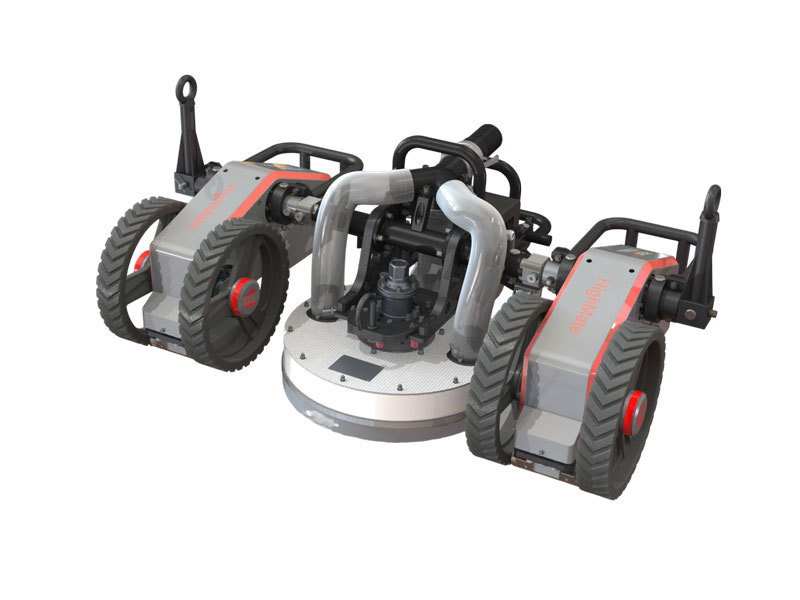

Hydroblasting Robot HighMate V Serie

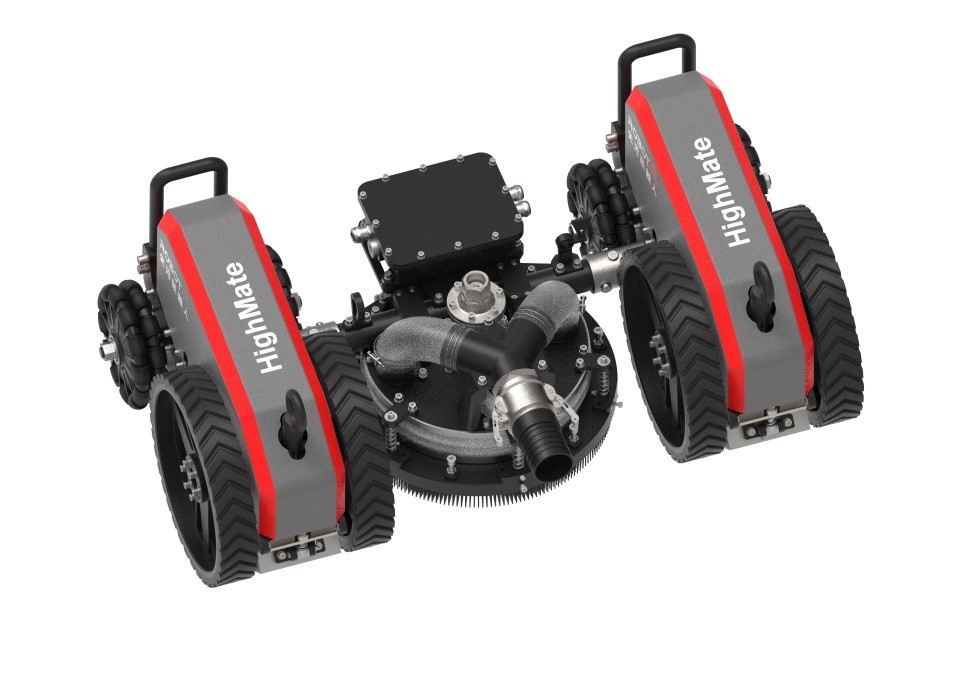

Hydroblasting Robot - HighMate V40 Ultra

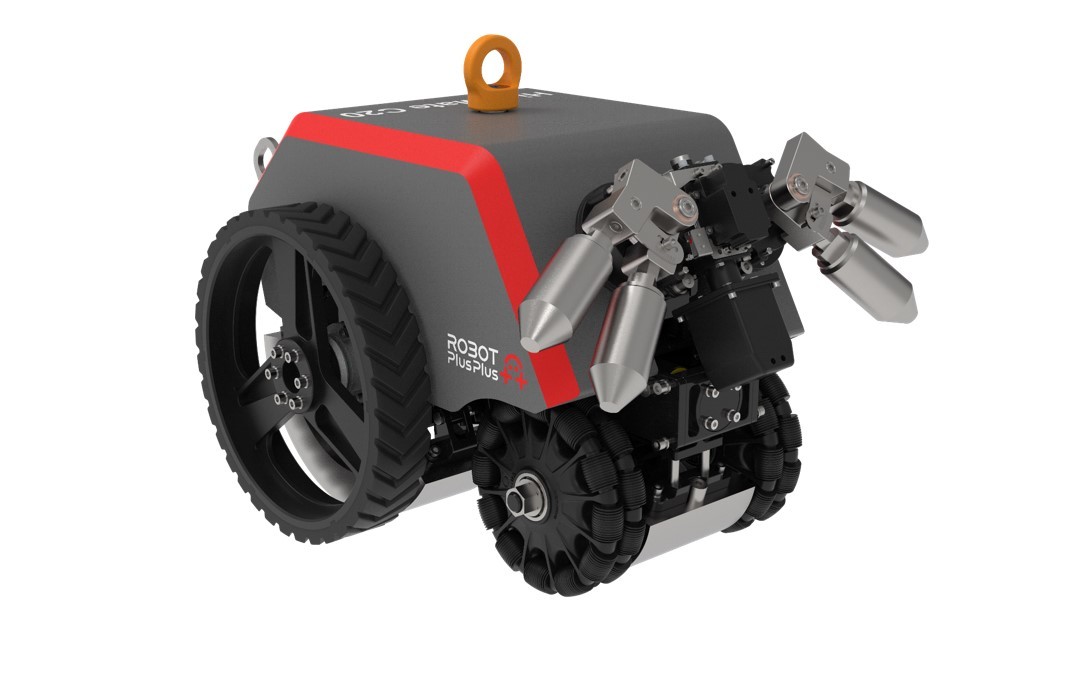

Cleaning Robot HighMate C Serie

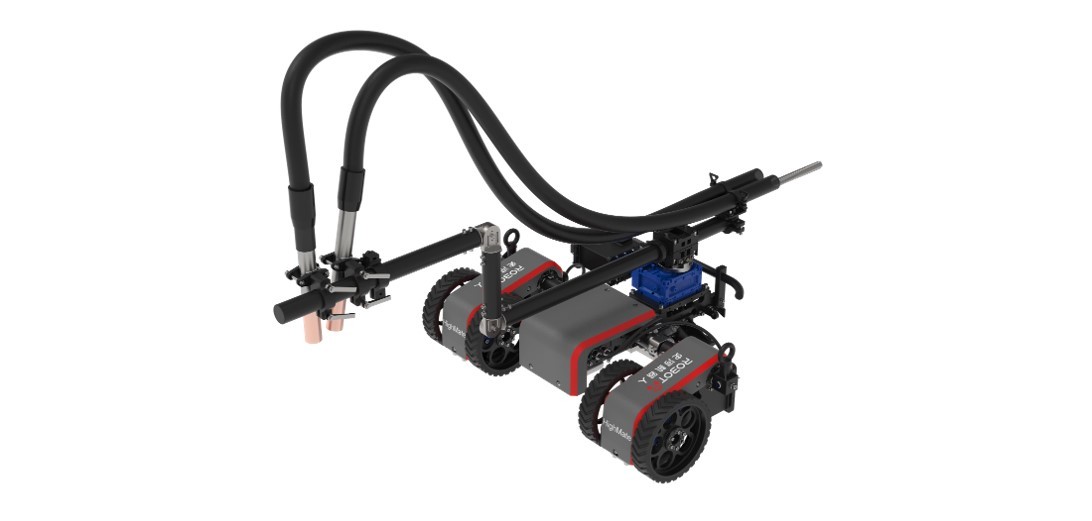

HighMate AP Series Multi-Functional Robot
