Mars

Capabilities & Details

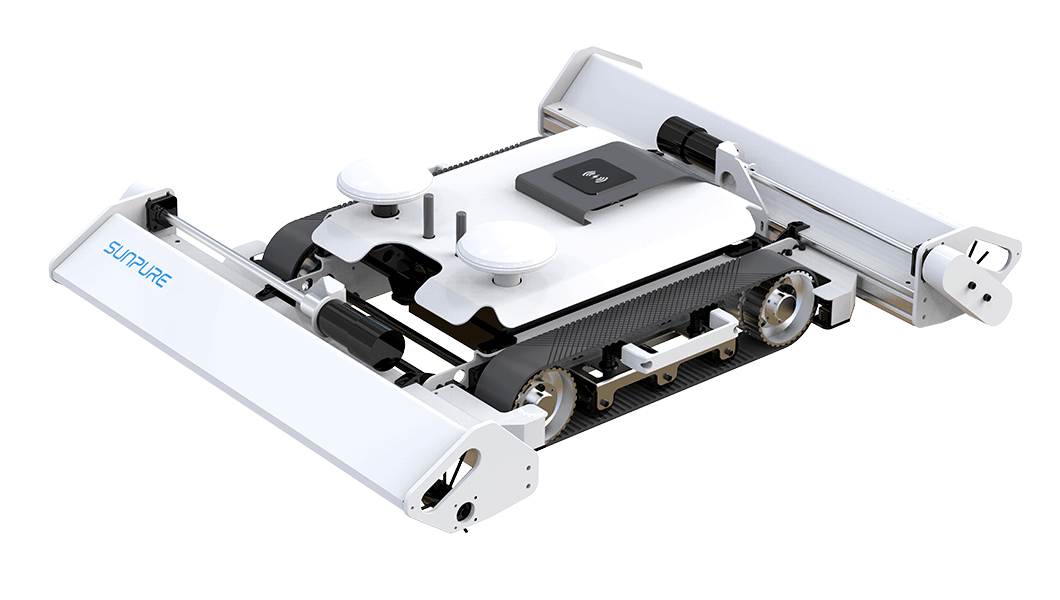

Trackless PV Cleaning Robot Mars

Product Highlights

• L5 Autonomy level
• Faster, more efficient
• Safty & Durability

Technical Specifications

General and mechanical

• Dimensions 780mm * 731mm * 316mm

780mm * 731mm * 316mm

• Weight 30 kg (without brush)

30 kg (without brush)

• Brush length 900mm / 1175mm / 1300mm

900mm / 1175mm / 1300mm

• Brush weight 8kg / 9kg / 10kg

8kg / 9kg / 10kg

• Max cleaning capacity 1800 m²/h

1800 m²/h

• Max traveling speed 25 m/min

25 m/min

• Cleaning type Dry cleaning

Dry cleaning

• Life cycle 8 years

8 years

• Warranty period 1 year/2400 hours

1 year/2400 hours

• Ingress protection IP65

IP65

• Rated power 360 W

360 W

• Rated voltage 24 V

24 V

• Battery capacity 30 Ah (customizable)

30 Ah (customizable)

• Battery life 2000 cycles

2000 cycles

• Working duration 4 h

4 h

• Charging time 3 h

3 h

• Charging method Wireless charging

Wireless charging

Adaptive capability

• Operating mode Autonomous

Autonomous

• Cleaning angle 0°~ 15°

0°~ 15°

• PV sub-array crossing Via bridge structure

Via bridge structure

• Tolerance of module vertical gap 40 mm

40 mm

• Tolerance of module horizontal gap 120 mm

120 mm

• Working ambient temp -20℃~ 60℃

-20℃~ 60℃

Communication and management

• Network type 4G + WIFI + LoRaWAN

4G + WIFI + LoRaWAN

• Management platform SmartPure

SmartPure

• Night time operation Yes

Yes

• Resumes at break-points Yes
• Monitoring terminal Web + APP

Web + APP

• Positioning Based on RTK global positioning

Based on RTK global positioning

• Positioning accuracy ±1 cm

±1 cm

• Fall prevention Virtual fence + ultrasound

Virtual fence + ultrasound

Gallery
